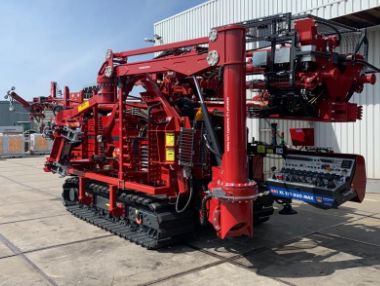

Sonic - MRS XL Max
The MidRotoSonic XL MAX (MRS XL MAX) is built to accommodate the powerful 50k MidRotoSonic drillhead in a relatively small package. The powerfull MRS XL MAX accelerates drilling speed, capacity and increases site productivity.
Single Rotary - T-650
The T-650 is advanced drilling equipment that comes with a host of features such as a hoist and pulldown system, air compressor, rotary head, mast, power units and levelling jacks, amongst others.
Single Rotary - TH60
Built to the highest industry standards, the TH60 has a long history for robust and reliable performance. This top-head drive PTO drill rig has a strong, mid-weight design that’s ideal for waterwell, dewatering, GeoExchange, uranium drilling and many more deep-hole applications.
Single Rotary - V100NG
With 40,000 lbs pullback and 22,100 lbs pulldown, this GeoExchange drilling rig establishes its reputation as an unbeatable, cost-effective asset. Its 180-degree swing and extending jib arm give greater flexibility and function for whatever type of work needs to be done.
Rentals & Equipment
Grouters and Installation Equipment
Contact us for Rental or Purchase information

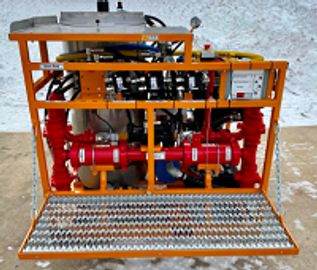

30-500 2 Tank Grout Pump
GPM / Pressure: Continuously pumps 0-30 gallon per minute at pressures up to 500 PSI
Mixing Tank: Two 56 gallon stainless steel mixing tanks with smooth taper cone bottom
Engine: 24.8 HP Tier 4 Final, 4 cylinder water cooled Kubota diesel engine
Hydraulic Pump: Triple hydraulic pump, 3 hydraulic circuits for ease of operation
Footprint: 94” x 42” footprint frame, 40 ½” bag platform height
Weight: Approximate weight of 2,300 lbs
50-500 Grout Pump
GPM / Pressure: Pumps 0-35 gallon per minute at pressures up to 500 PSI
Mixing Tank: 80 gallon stainless steel mixing tank with smooth taper cone bottom
Engine: Honda GX690 approximately 27 HP electric start engine
Hydraulic Pump; Tandem hydraulic pump with two hydraulic circuits for ease of operation
Foot Platform: Quality 53” x 19” grip thread foot platform
Weight: Approximate weight of 1,400 lbs
Deep Set Hose Reel
Spool: Large diameter spool holds 1000’ of 1 ¼” grout hose
Capacity: Freewheeling spool capacity
Base: Smooth 360 degree swivel base for easy access to wells
Hydraulics: Quick couplers for hydraulics, no special tools required
Grout Line: Hammer union grout line hook up at swivel
Operation: Operates off Geo-Loop grout pump hydraulic system or can be operated off of auxiliary hydraulic unit
Footprint: 70” outside diameter spool, 42” inside diameter spool, 24” wide
Weight: Approximate weight of 1,000 lbs

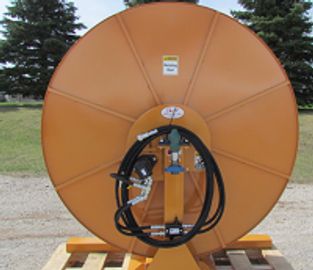

Loop Reel 1000
Spool: Large diameter spool holds 1000’ of 2” loop
Adjustable: Features adjustable width and diameter for many applications
Hydraulics: Quick couplers for hydraulics, no special tools required
Hydraulic Power: Hydraulic power in or out of the hole
Water Swivel: Live water swivel to fill loop as it goes in the ground, as needed
Footprint: 10' diameter spoke
Weight: Approximate weight of 1150 pounds

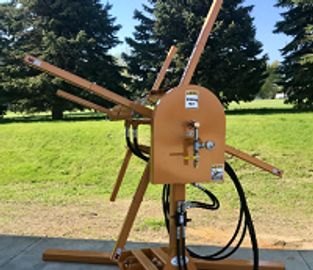

Loop Reel 500
Spool: Large diameter spool holds 500’ of 1 ¼” loop
Base: Smooth 360 degree swivel base for easy access to wells
Adjustable: Features adjustable width and diameter for many applications
Hydraulics: Quick couplers for hydraulics, no special tools required
Hydraulic Power: Hydraulic power in or
Footprint: 8' diameter spoke, min. inside diameter 25", max inside diameter 51", min. loop width 23 1/2", max loop width 31 1/2"
Weight: Approximate weight of 970 pounds

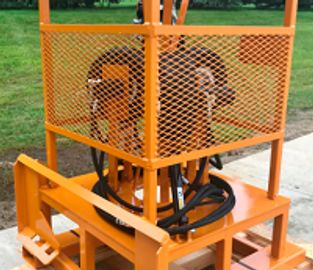

EZ Loop 500
Custom: Custom hydraulically driven loop installer with skid loader plate
Pneumatic Wheels: 3 driven pneumatic wheels at opposing angles, one of which is hydraulically adjustable for tension
Hydraulic Valve: Includes 4 spool hydraulic valve
Hydraulics: Hydraulic casing clamp and improved feeding systems
Fusing Equipment
Contact us for Rental or Purchase information
ElectroFusion Equipment
Processor is designed to fuse HDPE fittings from ½” up to 32” OD / 30” DIPS or 800mm. It has full traceability with data logging capabilities that can be downloaded to a USB memory stick. The processor is built to IP65 specs, CE approved and fully complies with the ISO International Standard for electrofusion welding equipment.

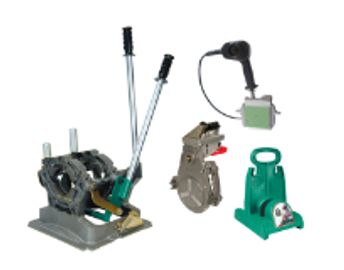

PitBull 14 Fusion Machine Package
The PitBull 14 is a compact, lightweight, highly reliable and rugged fusion machine that fuses 1" IPS to 4" DIPS (32mm to 110mm) pipe. The Pit Bull 14 incorporates McElroy’s patented Centerline Guidance System, and is designed to butt fuse tees, elbows and other fittings with consistent, high-quality results. The machines semi-automatic locking cam system maintains force during the cooling cycle. Features include reversible jaws, clamp knobs and facer.
Socket Iron
2" heater, 2" IPS Socket Fitting Holder, 1.7" & 2.4" OD Shears/Cutters, and ¾" IPS, 1" IPS, 1 ¼" IPS, 1 ½" IPS, and 2" IPS heater adapters.
Testing Gear and Accessories
Contact us for Rental or Purchase information
Pressure and Flow Testing
- Made from industrial grade AA6012 Heat Treated Aluminum, Hard Anodized for superior wear resistance
- No tools required – hand / firm tightening only
- Continuous pressure rated @ 580 psi (40 Bar) – Laboratory tested to over 870 psi (60 Bar)
- ½ inch NPT opening to attached desired apparatuses
Available in the following sizes:
1.00 inch for PE SDR – 11 to15.5
1.25 Inch for PE SDR – 11 to15.5
1.50 inch for PE SDR – 11 to15.5
2.00 inch for PE SDR – 11 to15.5
Flushing Assemblies
Custom Designed and prefabricated; Hydrostatically tested to 150 PSI; Available is sizes ranging from 2” to 6”
Countersinking Gear
1-1/4" (32mm) and 1-1/2" (38 mm) HDPE Pipe Cutter
Contact us for Rental or Purchase information
